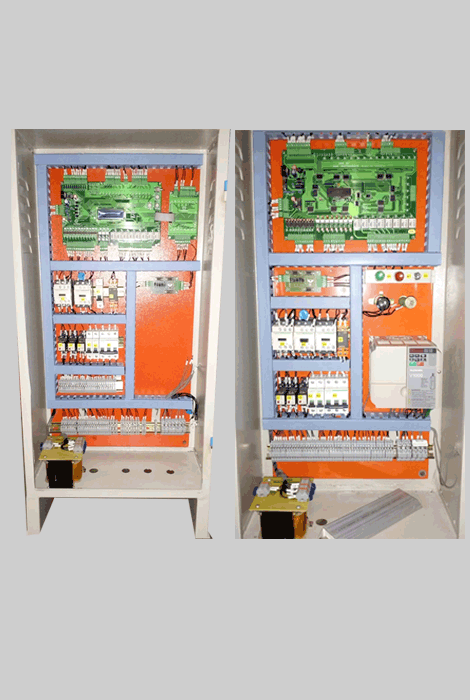

Smart Controller for Traction Elevator
Main Controller:
The SMART CONTROLLER is the state of art; latest technology Microcontrollers designed for AC Geared & Gearless Elevators for Speed up to 1.5m/s and well suited for low to high rise installation in buildings catering to residential apartments, commercial buildings and hotels.
Key Features:
- SMD designed, microcontroller based Main Control board
- Optically isolated inputs and outputs with LED indication
- The SMART Controller can be interfaced with any VVVF drive
- Seven segment display provided on main control board for parameter programming and Field test
- On line operation status
- Fault diagnosis resulting in minimum down time in any maintenance
- Auto fan system
- We provide separate Motor contactor, Brake contactor,R-cam contactor
- FM, Home landing system
- Status of all inputs and Outputs through LED indication on Main Control board
- Alpha numerical password protection
- Power Supply 24 VDC for COP & LOP
| Product Specs | SMART CONTROLLER |
| Speed (m/s) | Up to 1.5 mps |
| Operation | Open Loop-Standard, Close Loop - Optional |
| Stops (max) | Up to DCL -12 Stops, FCL - 8 Stops |
| Door Operation | Manual & Auto Door |
| Power Supply | 3 Phase, 380 to 440V AC, 50Hz, 4Wire |
